- Five in one – premium motorised test stand, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting
- With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 210 mm, readability 0,01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1,5 m, high data acquisition speed
- Motorised test stand for tension/compression force testing
- Stepper motor for greatest ease of use
– for constant speed from the smallest to the maximum load
– allows testing at minimum speed and full load
– for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds
– precise adjustment of the displacement speed using the information shown on the display - Maximum displacement protected by electronic end switches
- Large working area by means of long guide columns as standard, which allows a wide range of fixing options
- Particularly flexible mounting options for variable force measuring devices, such as, for example, SAUTER FC, FH, FK, FL:
– Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher
– Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)

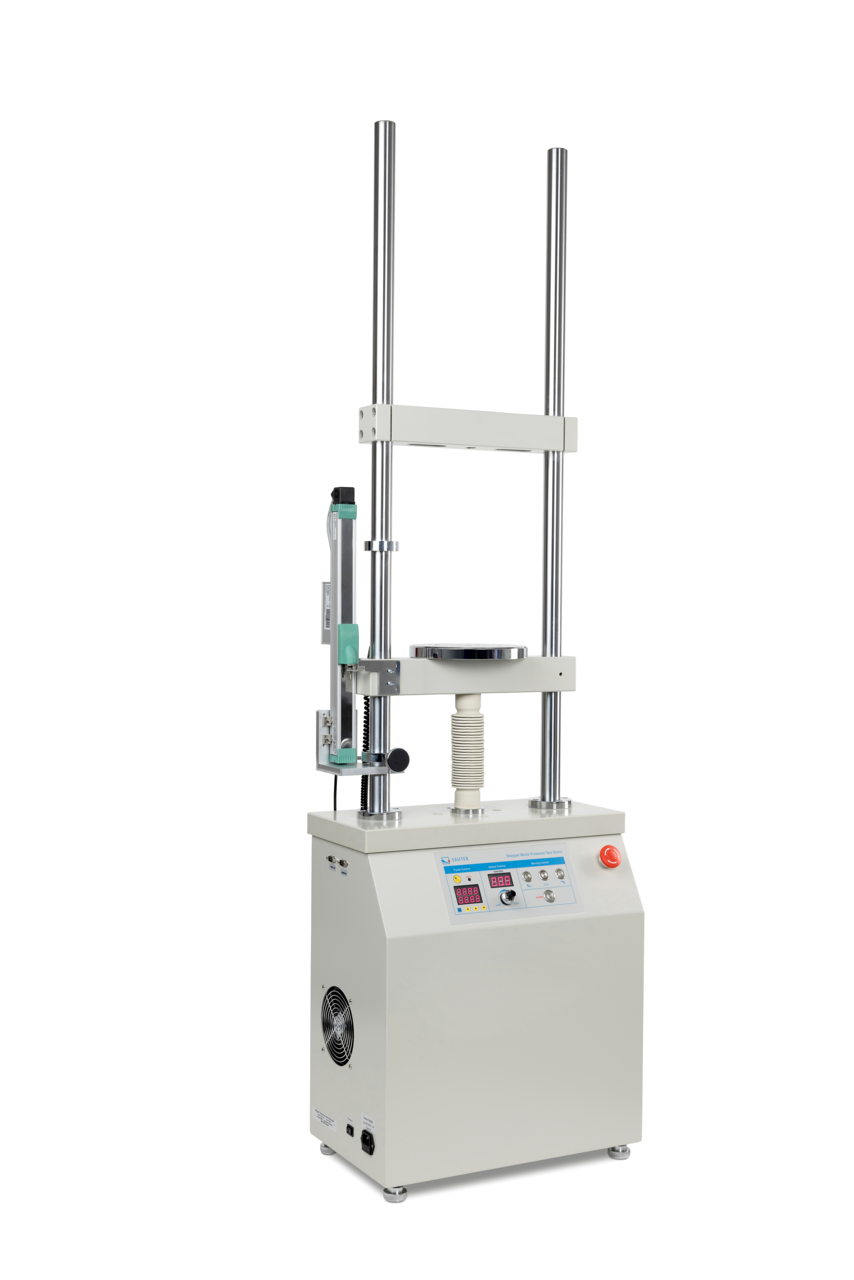

Test Stand Set incl. Length Measuring System SAUTER TVS 20KN100-LD
9,075.00€
Motorised test stand – electronic, two columns TVS 20KN100-LD, Measuring range 20 kN, speed range 1 mm/min 70 mm/min
| Weight | 170 kg |
|---|
