- Five in one – motorised test stand, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting
- With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 300 mm, readability 0,01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1,5 m, high data acquisition speed
- Motorised test stand for tension/compression force testing
- Stepper motor for greatest ease of use
– for constant speed from the smallest to the maximum load
– allows testing at minimum speed and full load
– for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds
– precise adjustment of the displacement speed using the information shown on the display - Automatic or manual operation mode
- Premium operating panel:
– Digital speed display
– Digital repeat function display
– Control of the test stand using PC software SAUTER AFH - Table-top design for comfortable operation
- Robust construction
- Fixation of SAUTER force measuring devices up to 500 N possible, only in combination with TVO-A01 (see accessories)

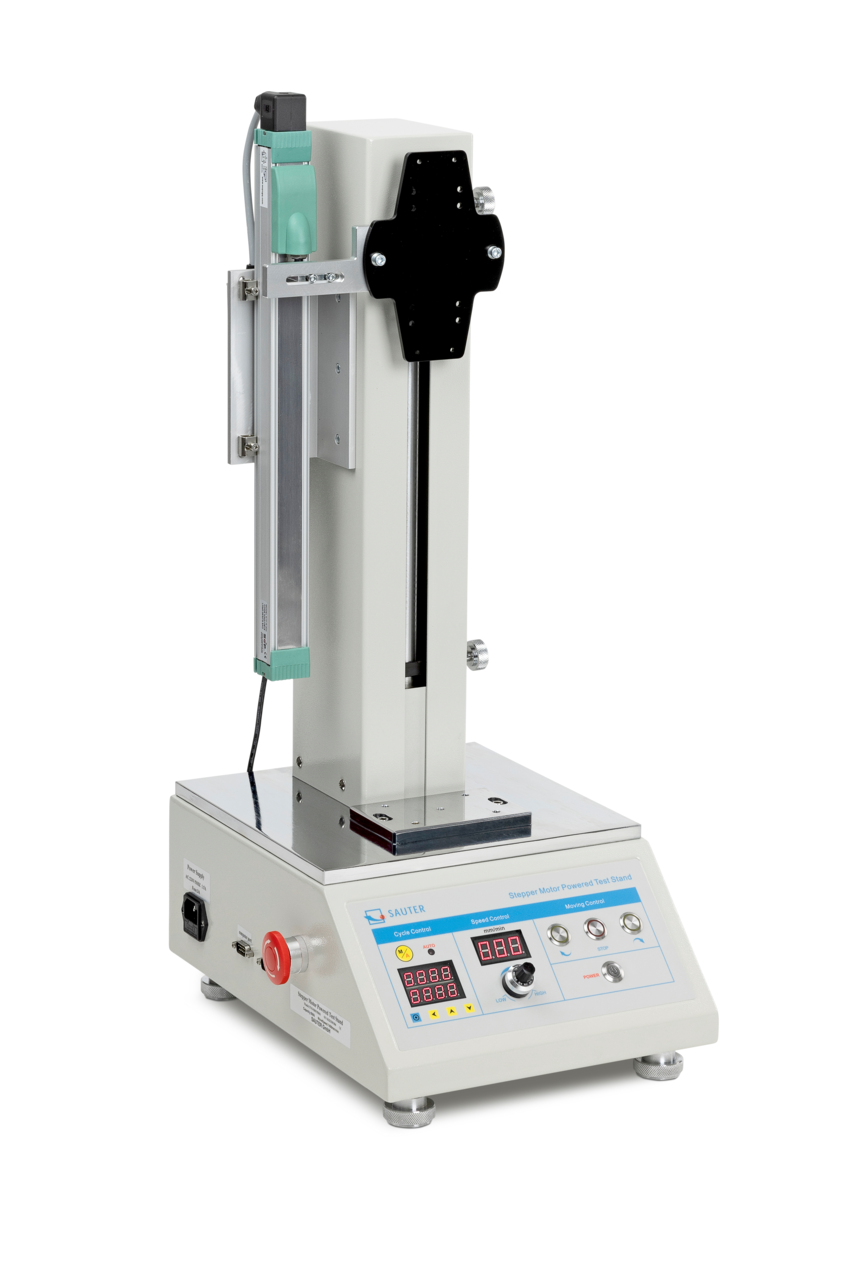

Test Stand Set incl. Length Measuring System SAUTER TVO 500N500S-LD
5,555.00€
Motorised test stand – electronic, one column TVO 500N500S-LD, Measuring range 500 N, speed range 1 mm/min 500 mm/min
| Weight | 40 kg |
|---|
