- Five in one – motorised test stand, digital length measuring device LB, interface cable, data transfer software AFH FD, two interface converters AFH 12 and mounting
- With digital length measuring device LB for creating force-displacement diagrams on the PC, maximum measuring range 300 mm, readability 0,01 mm
- Force controlled automatic switchoff, teststop after achieving an adjusted limit load, only in connection with a SAUTER FH force gauge
- Maximum displacement protected by electronic end switches
- Particularly flexible mounting options for variable force SAUTER measuring devices, such as, FC, FH, FK, FL
– Direct mounting of measuring devices with internal load cell up to a measuring range of 500 N
– Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher
– Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)

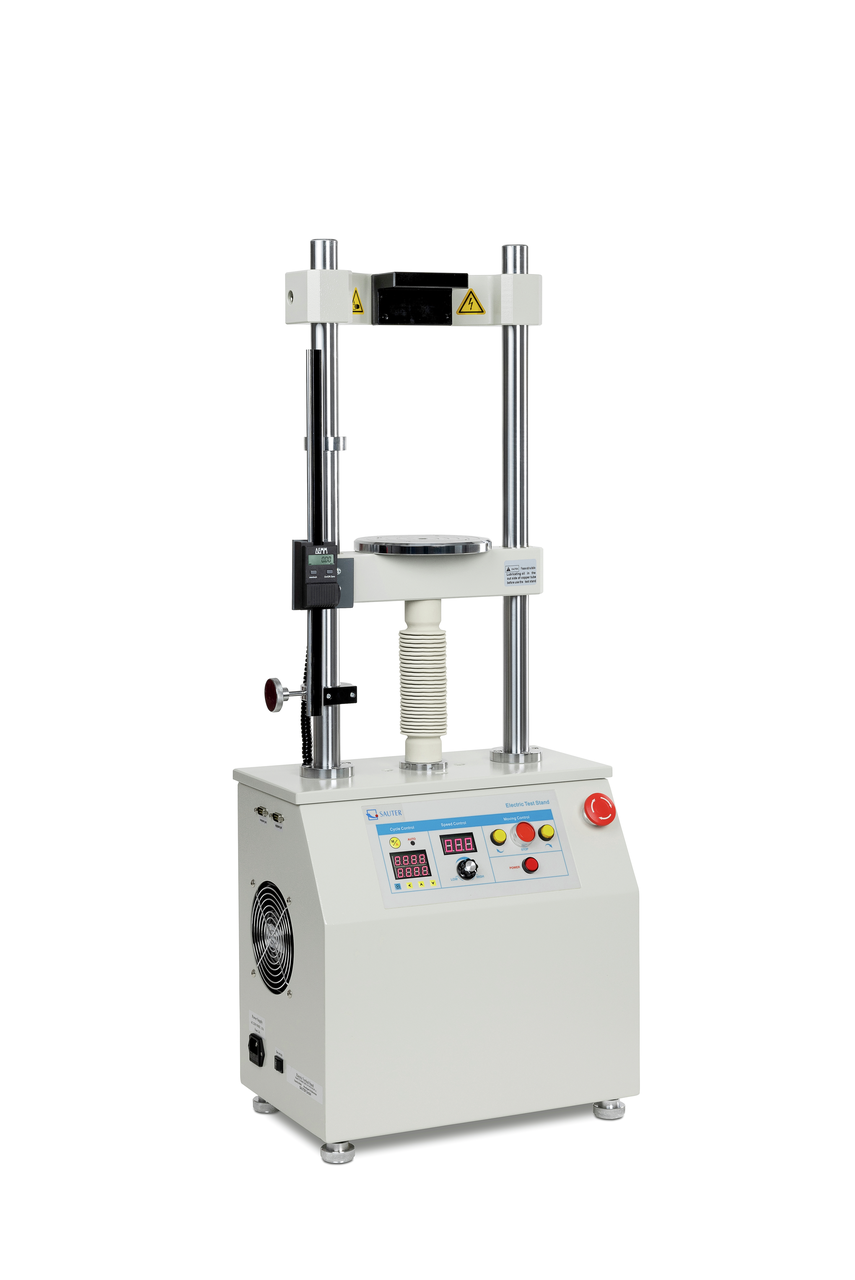

Test Stand Set incl. Length Measuring System SAUTER TVM 5000N230N-LB
5,368.00€
Motorised test stand – electronic, two columns TVM 5000N230N-LB, Measuring range 5 kN, speed range 10 mm/min 230 mm/min
| Weight | 70 kg |
|---|
