- With SAUTER scale kits, individual weighing solutions can be put together, for example, individual balance manufacturing in industry, automotive manufacturing and agriculture. In this way, a wide range requirements in terms of dimensions, materials, combinations of peripheral devices etc. can be fulfilled. Especially suitable for the manufacture of platform scales, weigh hoppers, silo scales, flush-mounted floor scales and other weighing devices. Area of use: Measuring mass as well as compressive force in harsh environments
- Details for weighing cells (4 × SAUTER CB 250-3P1):
– Accuracy in accordance with OIML R60 C3
– CE and RoHS compliant
– Protection against dust and water splashes IP67 (in accordance with EN 60529)
– Nickel-plated steel
– Nominal sensitivity: 3 mV/V
– 4-wire connection - Junctionbox SAUTER CJ P4PG:
– The robust aluminium diecast housing
– Protection against dust and water splashes IP65 - Note: Use the SAUTER CW in combination with one of our display devices, for example, KFS-TM, YKV, CE HS

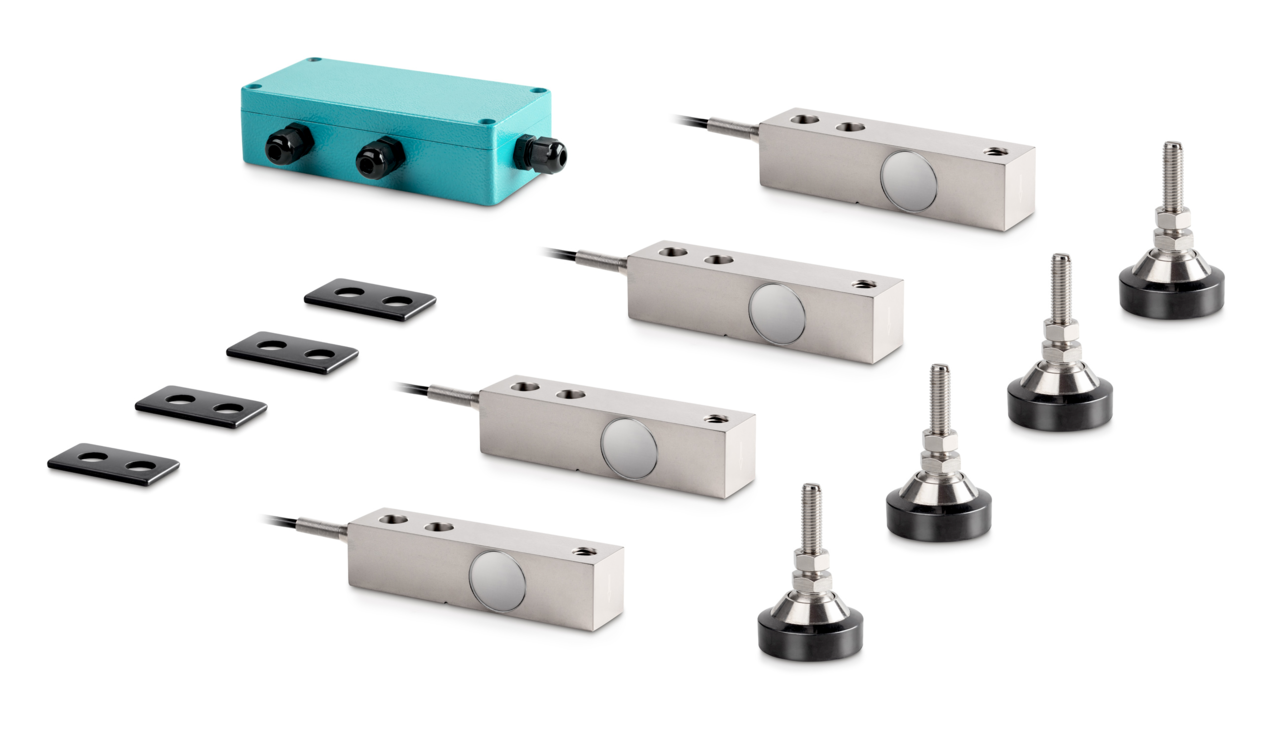

Scale Kit SAUTER CW 750
704.00€
Sclae kit CW 750, nominal load 750 kg
| Weight | 7 kg |
|---|
