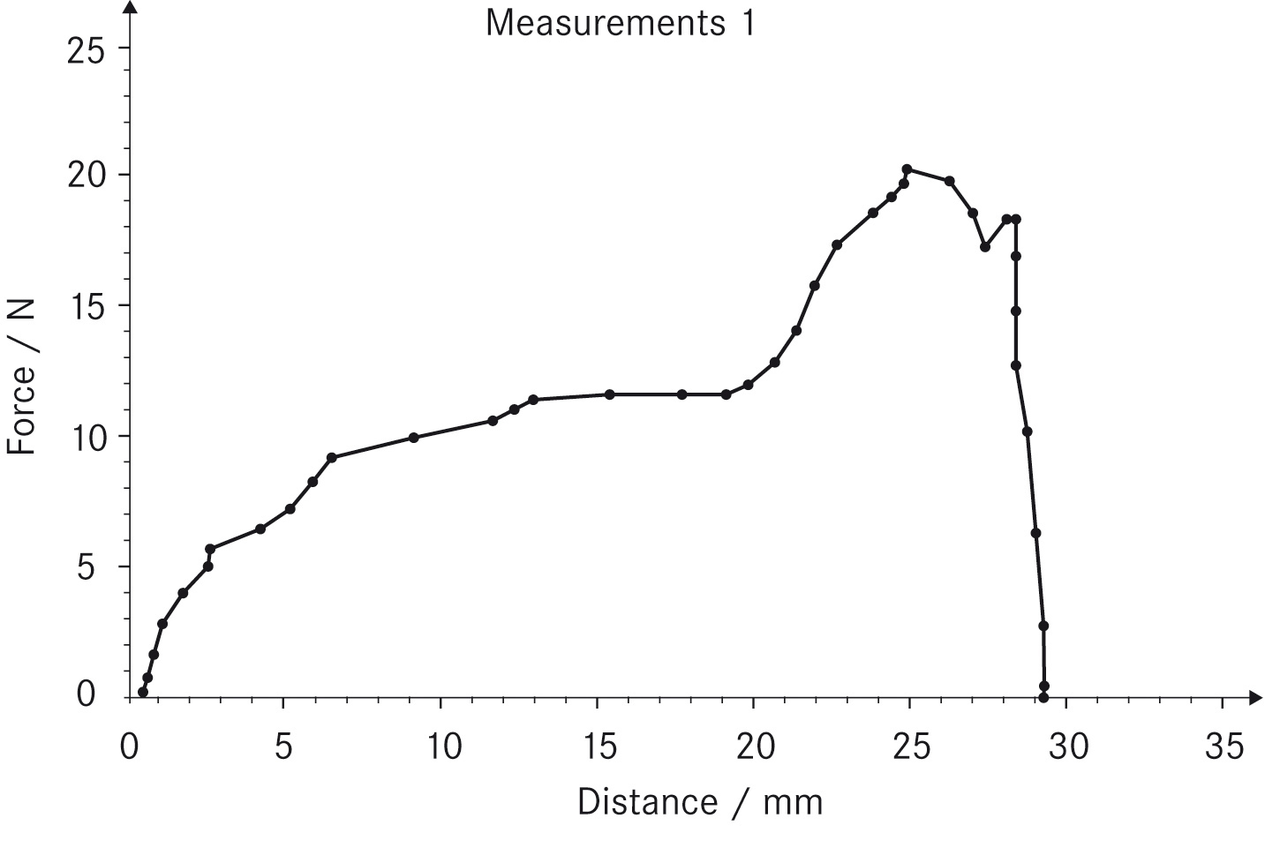

- AFH FD software is designed for all applications that require the measurement of forces, depending on the displacement. Typically these are force progression graphs in penetration tests or pullout tests
- The program simultaneously requests the measurements from a force measuring device, e.g. SAUTER FH, as well as a length measuring device, e.g. SAUTER LB or SAUTER LD
- The measurements from both instruments are transferred continuously to the PC, synchronised by the AFH FD software and exported in the form of a graphic, as well as free data format for simple processing in Microsoft Excel®
- The software AFH FD is compatible with all instruments of series SAUTER FC, FH, FL
- These measuring instruments are usually used with SAUTER test stands, in particular those from the SAUTER TVM-N and TVS range. However, it is also possible to use them with mechanical testing machines
- Further analysis functions:
– Extension of the test object
– Tensile and compressive force
– Endurance testing
– Archiving the recorded data - Scope of delivery for SAUTER AFH FD:
– Software AFH FD on DVD
– User manual
– RS-232 interface cable for FH (FH-A01)
– USB interface cable for FL (FL-A01)
– RS-232 interface cable for LB (LB-A01) - Compatible with the following operating system: Microsoft Windows 10, 11®
- Order example for a complete test system:
– FH 5K (Digital force gauge)
– LB 300-2 (Digital length measuring device)
– AFH FD (Force-distance evaluation software)
– TVM 5000N230N* (Test stand)
– LB-A02* (Mounting LB on test stands)
– 2× AFH 12 (RS-232/USB adapter)
– AC 04* (Test object holder)
– 963-163* (Force calibration)
– 961-150* (Length calibration)
* not necessarily required for operating the AFH FD software
Data Transfer Software SAUTER AFH FD
781.00€
Software AFH FD
| Weight | 045 kg |
|---|
