Binocular or trinocular head (according to model) Siedentopf type, 30º inclined and 360º rotating. For digital model only: binocular head, Siedentopf type, 30º inclined with built-in digital camera CMOS 1/2 chip 2048 x 1536 pixels with USB 2.0 output. Widefield N-WF10X/20 mm eyepieces. Reversed quadruple nosepiece with CCIS Plan achromatic objectives (Colour Corrected Infinity System) EC Plan 4X, EC Plan 10X, EC Plan 40X Spring and EC Plan 100X Spring-Oil. Coaxial coarse and fine focusing with tension adjustment. Low position coaxial mechanical stage with controls at right side. Focusable 1.25 N.A. Abbe condenser with iris diaphragm and slot. Blue filter Ø45 mm, dust cover, hexagonal Allen key and immersion oil 5 ml bottle included. Digital model includes calibration slide and Motic Images Plus 3.0 Software for PC and Mac. LED illumination 3W with intensity control. Universal supply 100-240 V (CE). 5 years warranty on optical and mechanical components. Delivery time 3-4 weeks

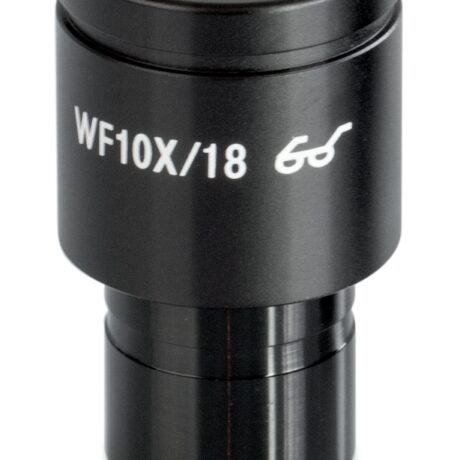

Monocular, binocular or trinocular head (according to model), 45º inclined and 360º rotating. Widefield WF10X/18 mm eyepiece. Quadruple nosepiece with achromatic EA objectives 4X, 10X and 40X S. Separate (1802 model) or coaxial (2820 & 2823 models) coarse and fine focusing system. Built in low position coaxial mechanical stage. Focusable 1.25 N.A. Abbe condenser. Iris diaphragm with filter holder. LED 20 mA, 3.5 V, 70 mW illumination with intensity control. Dust cover included. Main supply 100-240 V (CE), batteries and charger included. 5 years warranty on optical and mechanical components. Delivery time 3-4 weeks
