Made of heat resistant, low expansion, 3.3 borosilicate glass (upper grade). The sample is boiled in the boiling flask, steam rises in the assembly up to a condenser, and the condensate falls into the small extractor burette (water is returned to the tank through a channel whose position differs according to the densitiy of the oil in relation to water). After some time, the oil volume collected in the burette can be directly measured. Includes 1000 ml round bottom flask (24/29), 300 mm Liebig condenser (24/29) and 10 ml extractor with 0 – 10 ml graduation and 0,1 ml subdivisions (24/29)
Available in 3 or 6 positions. The manifold includes a hose connector for a tubing with internal diameter 10 mm. Can be connected to any filter holder bearing a stopper size #8, such as FUC3-047-001 or FUSS-047-001
Made of top quality 3.3 borosilicate glass. Contains base with fritted glass holder, silicone stopper #5 (Øupper 27 mm y Ølower 23 mm), funnel and aluminium clamp. Can be completed with Filtering flask FFE3-125-002

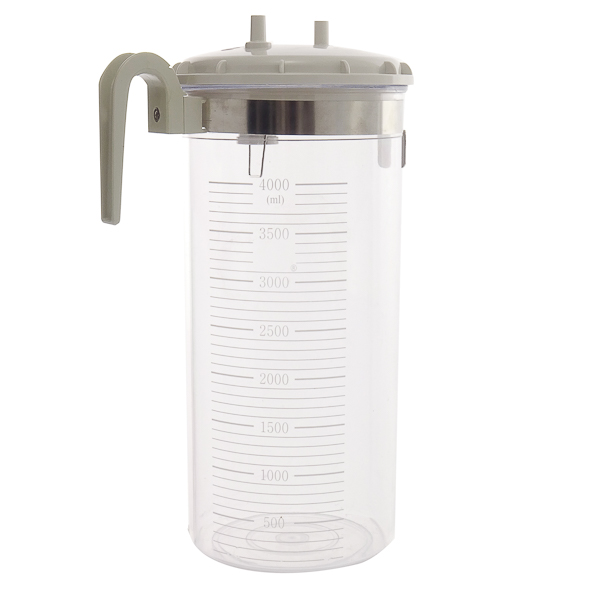

Collecting recipient that prevents contaminants from migrating into the vacuum pump and prevents vapors from being emitted back into the laboratory system. Made of resistant PC plastic. With entrance and exit ports for connecting tubes
Includes stainless steel holder, support screen and funnel (300 ml), silicone stopper #8 (Øupper 37 mm and Ølower 30 mm) and aluminium clamp. Can be connected to any filter holder bearing a stopper size #8
Made of top quality 3.3 borosilicate glass. Includes base with fritted glass holder, silicone stopper #8 (Øupper 41 mm y Ølower 33 mm), funnel and aluminium clamp. Can be completed with Filtering flask FFE3-1K0-002 or a Filter manifold
Made of top quality 3.3 borosilicate glass. Contains base and tubulated cap, PTFE-coated stainless steel screen, funnel and aluminium clamp. Hose connector is designed for tubing Øinner 6 mm. Flask is not included (see any 40/35 ground joint flask)
Made of top quality 3.3 borosilicate glass. Contains flask, fritted glass holder base, funnel and aluminium clamp. Hose connector is designed for tubing Øinner 6 mm
